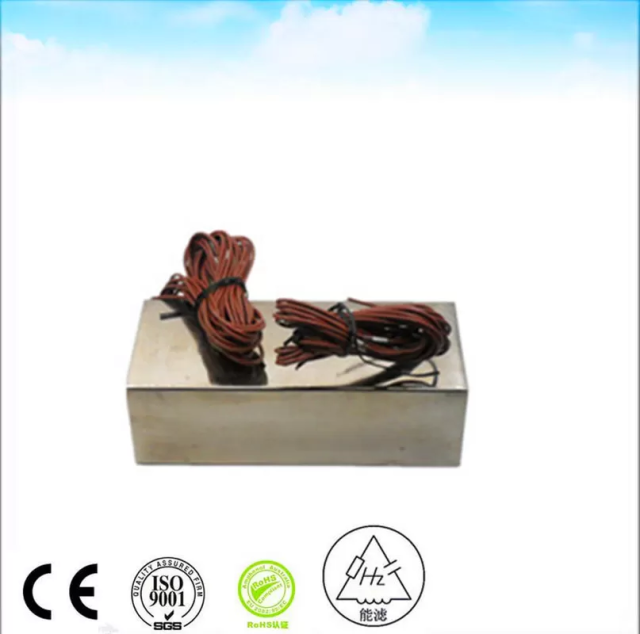

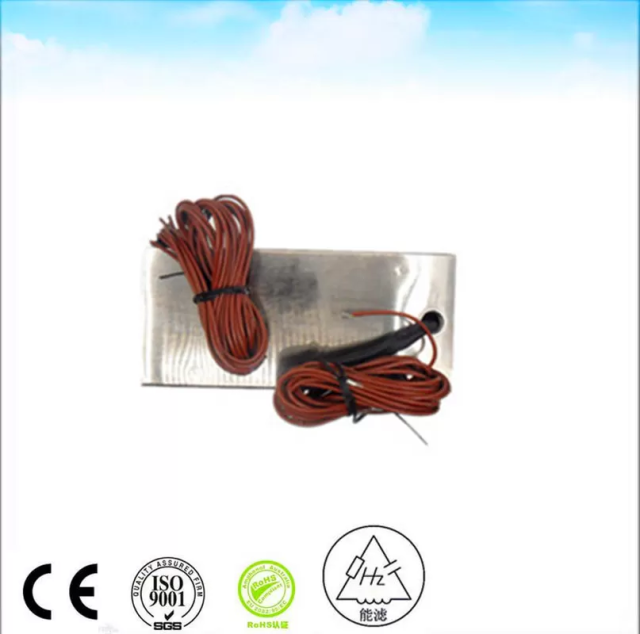

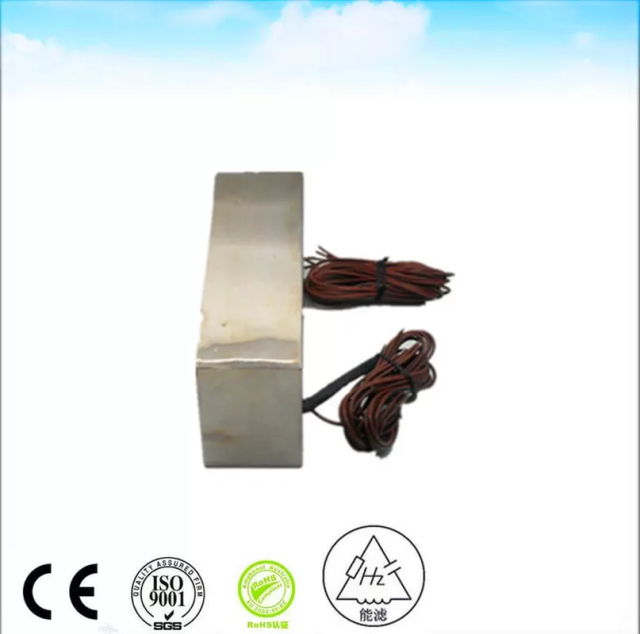

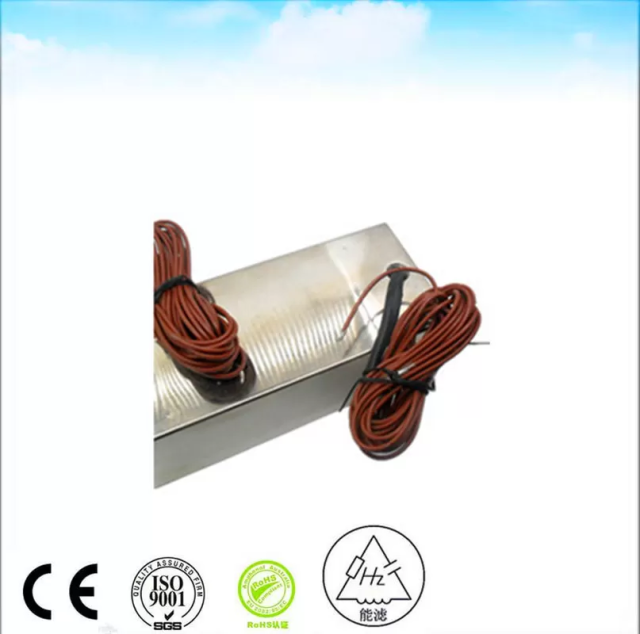

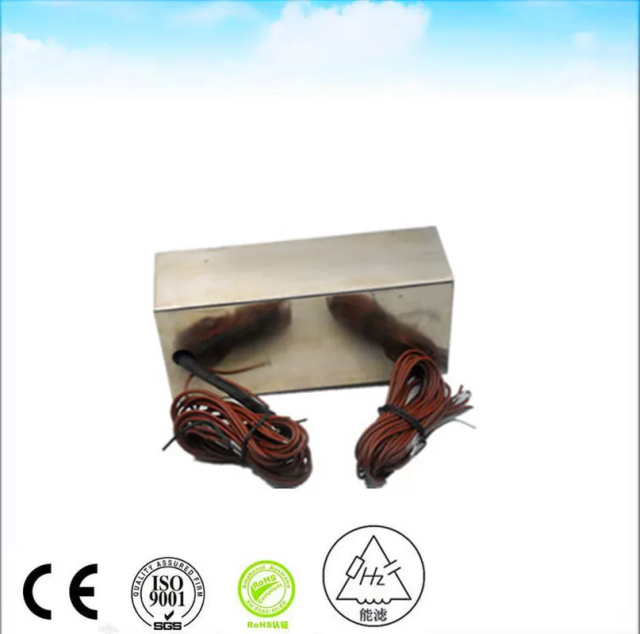

6 lines 3A emi signal emi filter for Air conditioning signal line anechoic chamer
Functional Positioning for Industrial and Control Systems
Designed primarily for automatic machines and three-phase power applications, this EMI filter addresses conducted electromagnetic interference on six-line configurations, supporting current variants such as 5A and voltage ratings up to 250 VDC. Its primary users include electrical engineers and system integrators requiring stable performance in control panels, machine racks, and enclosure installations. As a general-purpose EMI filter, it enhances the reliability of power line signals by attenuating differential and common mode noise, making it an essential component delivered by a reputable rf filters manufacturer with proven expertise in industrial EMC solutions.
Technical Specifications Enabling Robust EMI Suppression
This device incorporates a compact, easy-to-install design featuring a six-line configuration optimized for 5A current and 250 VDC rated voltage, with a passband frequency near 7 kHz to address conducted noise effectively. The filter’s attenuation capabilities cover both common mode and differential mode interference, essential for precision control electronics and sensitive equipment. Manufactured with compliance to international safety standards such as UL, VDE, and CE, it provides measurable EMI reduction that is verified through stringent testing protocols, representing quality commitment expected from a leading rf filters supplier.
Industry Applications Ensuring Compliance and System Efficiency
Widely applicable across automatic machinery, office equipment like printers and copiers, and industrial electrical devices, this three phase EMI filter optimizes power quality by minimizing EMI impact. It integrates seamlessly in three-phase power distribution systems, photovoltaic inverters, servo drives, and automated control systems where EMI suppression is critical for component longevity and regulatory adherence. By partnering with a recognized rf filters manufacturer, users gain access to tested reliability and support crucial for maintaining compliance and reducing operational disruption in varied industrial environments.
What is a power line filter?
Power line filter is electrical equipment which effectively filters particular frequency point in the power line or the frequency out of the particular frequency point. Power line filter performance is to get a certain frequency power supply signal or power supply signal after eliminating a certain frequency through connecting power supply filter in power line. Based on this performance of power line filter, a square wave group or compound noise wave could be converted into a certain frequency sine wave through power line filter.
Power supply filter is a passive bi-directional network, that is, one end is power supply, and the other end is load. Power supply filter principle is a impedance adaption network: the larger the impedance mismatching is (between “power filter input&output” and “power & load” side), the more effective the attenuation of electrical magneto interference is.
|
RATED VOLTAGE
|
250 VDC
|
||
|
RATED CURRENT
|
3A 5A
|
||
|
PASS BAND
|
7K
|
||
|
LINES NUMBER
|
6
|
||
General purpose 3A 1-phase single-stage EMI power line filter, rated voltage 115/250V AC 50/60Hz, high performance for noise suppression with compact size, easy mounting, and low price. EMI line/noise filter, 1-phase 1-stage, rated current 3A and rated voltage 250V AC, has a wide range of applications like electrical equipment, electronics, household appliances, and office equipment with its good differential mode and common mode attenuation performance.
