Anechoic Chamber
|
Anechoic Chamber Description we provide Semi-EMC Chamber and Full EMC Chamber for EMC Testing.

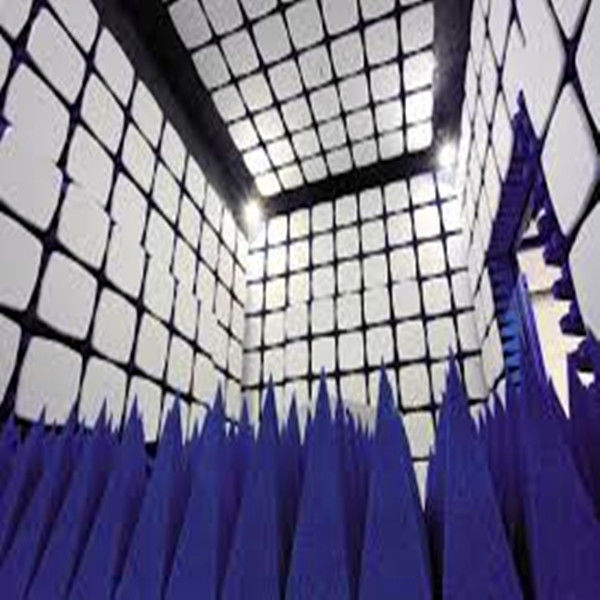

An Anechoic Chamber generally consists of an RF shielded room which is either partially or fully lined with RF absorber material. It is used to perform several types of testing and measurements.
our chambers are typically constructed from the modular shielding system.
EMC anechoic test chambers are used by industry to perform radiated emissions and radiated immunity testing of electrical/electronic equipment to various International specifications such as EN 50147 part 2 / ANSI C63.4 / EN55022 / EN61000-4-3 and various CISPR documents.
Chambers are also designed for EMC testing for testing in accordance with military and avionics specifications such as MIL STD 4612E, DO 160 and DEF STD 59-41.
we offers a fully range of anechoic chambers, including:
|
The types we provided for anechoic chamber room with RF absorber
- Compact chamber
- 3 Meter chamber
- 5 Meter chamber
- 10 Meter chamber
- Free space chamber
- MIL-STD chamber
- Customized Anechoic chamber acceptable
Shielding performance for anechoic chamber room with RF absorber
| Magnetic field | 14kHz | 75dB |
| 100KHz | 100dB | |
| 200KHz | 110dB | |
| Plane wave | 50-103MHz | 120dB |
| Microware | 1-10GHz | 110dB |
| 10-20GHz | 100dB | |
| 20-40GHz | 80dB |
Superior Shielding Structure for EMC Applications
The RF Shield EMC Chamber Room is designed for demanding EMC test and electromagnetic compatibility assessments. It features a modular panel system fabricated from galvanized steel with copper or aluminum inner layers, offering superior electromagnetic shielding against radiated and conducted interference. The room’s construction ensures over 100dB attenuation from 14kHz to 40GHz, effectively isolating external radio interference sources. It meets ISO, GB and MIL-STD shielding standards, making it ideal for both commercial and military EMC validation. This structure is widely adopted by labs, R&D centers, and product certification facilities across various industries.
Modular Build for Adaptability and Precision
Haozhuo’s RF shield box manufacturers team designs each chamber with a modular layout, allowing easy on-site assembly, disassembly, and maintenance without welding. Custom options include low pass filter installations, filtered power lines, signal interfaces, emi filters, ventilation waveguides, and shielding windows. Each module undergoes precision machining to maintain tight sealing tolerances, ensuring consistent emi shielding performance. This system is not only adaptable to new installations, but also well-suited for retrofitting in existing lab spaces where flexibility and high-performance shielding are required for ongoing emc emi product testing.
Designed for High-Frequency Reliability and Testing Accuracy
With an operational shielding range of 14kHz to 40GHz, this RF Shield EMC Chamber Room is tailored for high-frequency EMC test applications, including wireless device validation, automotive component EMI testing, and IoT system evaluation. The chamber ensures clean signal environments by mitigating external noise and internal emissions. Engineers and emi filter manufacturers rely on its stable performance to ensure compliance with CE, FCC, and MIL standards. Its ability to support reliable test conditions makes it a critical part of any certified electronics testing workflow or regulatory compliance infrastructure.
Product Advantages
Precision Shielding Across Broad Frequency Bands
The chamber delivers consistent electromagnetic shielding efficiency with attenuation exceeding 100dB across the 14kHz to 40GHz range, making it ideal for critical emi protection tasks. This extensive frequency coverage supports emc test applications for devices using Wi-Fi, 5G, radar, and industrial control systems. The structure maintains its shielding effectiveness in varying environmental conditions, supported by verified shielding materials and multi-layer construction. This ensures strong resistance to radio interference, offering a controlled testing environment and minimizing performance variability for both R&D and compliance validation.
Durable Structure with High-Grade Modular Design
Constructed from galvanized steel panels and reinforced with precision-cut joints, the RF Shield EMC Chamber Room features a durable and corrosion-resistant build. The chamber's modular configuration allows easy customization and maintenance, making it a reliable choice for long-term usage. Designed to integrate with emi filter systems and low pass filter solutions, it accommodates user-specific requirements for ventilation, cabling, and power connectivity. These design elements contribute to its position among top-tier rf shield box manufacturers, ensuring both mechanical strength and superior emi shielding performance.
Efficient Installation and Long-Term Stability
Haozhuo’s RF shielding chamber is engineered for fast deployment using a no-welding modular assembly. This significantly reduces installation time and labor costs. Once assembled, it provides long-term operational stability with minimal maintenance needs. The durable material composition and sealed joints prevent degradation from humidity, corrosion, or temperature fluctuations. The chamber’s architecture supports ongoing 24/7 operations for extended emc emi testing, offering users maximum uptime and testing consistency. It is optimized for continuous use in production environments, R&D labs, and filter certification centers.
About Us
Haozhuo is a professional manufacturer specializing in EMI shielding, EMC test equipment, and advanced RF shield box technology. With a focus on reliability, performance, and precision, we deliver custom-built solutions for industries including telecommunications, medical imaging, aerospace, and automotive electronics. Our expertise covers emi filter, low pass filter, and power distribution unit development, as well as the construction of shielded rooms and enclosures that comply with international standards. Our engineers possess deep knowledge in electromagnetic compatibility, enabling us to design systems that enhance signal integrity, prevent interference, and meet rigorous testing requirements. Our modular designs simplify on-site assembly, while robust materials ensure durability in demanding test conditions. With clients across Asia, Europe, and North America, Haozhuo is recognized as one of the top emi filter manufacturers and industrial filter manufacturers. We are committed to advancing EMC testing through innovation and excellence in every product we build. By continually investing in R&D and quality control, we aim to remain a trusted partner for reliable electromagnetic shielding and filtering solutions.
Contact Haozhuo now to get tailored EMC shielding solutions engineered for precision, reliability, and high-performance EMI protection.
