Our Emc RF Absorbing Material Foam delivers high-efficiency microwave absorption for shielding rooms and anechoic chambers. This advanced microwave absorbing foam ensures precise attenuation with customizable options, ideal for RF containment.
Functional Positioning with Professional Users in Mind
Designed for engineers and procurement professionals involved in electromagnetic compatibility projects, the Emc RF Absorbing Material Foam serves as a vital solution for RF shielding rooms and testing facilities. This product addresses the critical need for minimizing electromagnetic interference and wave reflections in controlled environments. By partnering with an experienced EMC absorber supplier, users gain access to precisely engineered materials that integrate seamlessly into shielded enclosures and anechoic chamber constructions where compliance with international EMC standards is essential. Professionals can specify customized dimensions and absorption properties to tailor solutions for a variety of RF test configurations.
Technical Features Delivering Quantifiable Performance
The polyurethane-based foam structure offers broadband absorption across frequencies ranging from MHz to over 100 GHz, significantly reducing reflectivity by 10-50 dB depending on configuration. The product’s availability in multiple heights and customizable base sizes enables exact matching of absorbing properties to test requirements. Compliant with CE and RoHS certifications, this product from an established RF absorber manufacturer merges verified performance with quality assurance. The foam’s lightweight, flexible design simplifies installation processes within confined test chambers. Models within the HZ series provide detailed technical parameters ideal for engineering calculations requiring reliable attenuation data.
Industry Applications Enhancing Measurement Accuracy and EMC Solutions
Widely employed in anechoic chambers, EM test labs, and specialized microwave test environments, this product contributes directly to improved signal integrity and noise floor reduction. It is especially suitable for laboratories conducting radar cross-section measurements, military RF containment, and EMI mitigation in sensitive industrial applications. Collaborating with qualified anechoic chamber absorber manufacturers ensures products meet stringent industry demands for repeatability and reliability. Additionally, tailored absorber materials can retrofit existing chambers, upgrading operational environments without comprehensive reconstruction, thereby optimizing operational investment.
Design and Structural Efficiency Supporting Integration

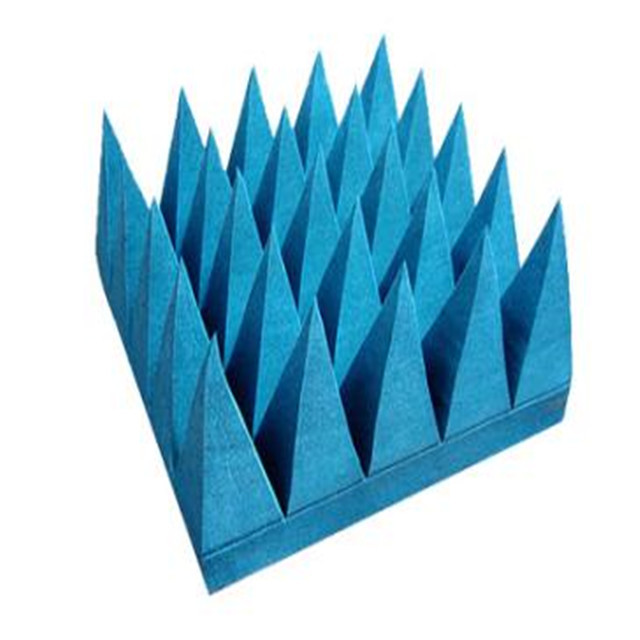

The Emc RF Absorbing Material Foam features a modular design approach, supporting easy configuration into pyramid or flat-sheet layouts. As an OEM-capable pyramid absorber supplier, the company offers options including carbon-based foams and honeycomb variants suited for specialized absorption profiles. The foam’s polyurethane base substrate provides structural resilience while maintaining low weight, facilitating handling and modular assembly in various chamber geometries. This adaptability enables flexible customization aligned with layout or spatial constraints typical in EMC test chamber environments. Such versatility further extends to integration alongside active shielding systems or absorptive segmentation approaches that optimize the overall chamber performance.
Operational Performance and User Efficiency
Performance-wise, this RF absorbing foam delivers consistent reflectivity reductions essential for precise electromagnetic compatibility assessments. The material’s easy compressibility and installation flexibility reduce on-site labor requirements and downtime, enhancing overall workflow efficiency. Factory-backed quality certifications and consistent manufacturing standards from a reliable EMC test chamber absorber supplier ensure batch-to-batch consistency and long-term durability. This translates into dependable absorber life cycles minimizing replacement frequency, thereby reducing lifecycle costs. End users benefit from improved test data accuracy and simplified absorber material management within critical RF containment frameworks.
rf foam absorber for rf shielding room
key benefits include:
RF Foam Absorber Types
· Rubber sheet micromave absorber
· Carbon-based foam microwave absorber
· Honeycomb & high power microwave absorber
· Sprayable microwave absorber
· Rigid and castable microwave absorber
| TYPE | BASE SIZE | NUMBER OF PYRAMIDAL | WEIGHT | TOTAL HEIGHT | BASE HEIGHT | PYRAMIDAL HEIGHT |
PYRAMIDAL WIDTH |
| HZ-30 | 500*500 | 36*36 | 1.1 | 30 | 15 | 15 | 14 |
| HZ-50 | 500*500 | 20*20 | 1.8 | 50 | 20 | 30 | 25 |
| HZ-70 | 500*500 | 20*20 | 2.5 | 70 | 20 | 50 | 25 |
| HZ-100 | 500*500 | 13*13 | 3.3 | 100 | 25 | 75 | 38 |
| HZ-150 | 500*500 | 9*9 | 4.8 | 150 | 30 | 120 | 56 |
| HZ-200 | 500*500 | 7*7 | 6.3 | 200 | 40 | 160 | 71 |
| HZ-300 | 500*500 | 5*5 | 9 | 300 | 60 | 240 | 100 |
| HZ-400 | 500*500 | 4*4 | 12 | 400 | 70 | 330 | 125 |
| HZ-500 | 500*500 | 3*3 | 15 | 500 | 80 | 420 | 167 |
| HZ-600 | 400*400 | 2*2 | 18 | 600 | 90 | 510 | 200 |
| HZ-700 | 250*500 | 1*2 | 21 | 700 | 100 | 600 | 250 |
| HZ-800 | 250*500 | 1*2 | 24 | 800 | 100 | 700 | 250 |
| HZ-1000 | 334*334 | 1*1 | 30 | 1000 | 150 | 850 | 3 |
| TYPE | HEIGHT | REFLECTIVITY | ||||||||
| 40 | 15 | 10 | 3 | 1.5 | 0.5 | 0.3 | 0.2 | 0.15 | ||
| HZ-100 | 100 | 50 | 45 | 40 | 30 | 20 | ||||
| HZ-150 | 150 | 50 | 50 | 45 | 33 | 25 | ||||
| HZ-200 | 200 | 50 | 50 | 50 | 37 | 30 | 17 | |||
| HZ-300 | 300 | 50 | 50 | 50 | 40 | 33 | 20 | |||
| HZ-400 | 400 | 50 | 50 | 50 | 45 | 40 | 25 | 17 | ||
| HZ-500 | 500 | 50 | 50 | 50 | 45 | 40 | 30 | 20 | 17 | |
| HZ-600 | 600 | 50 | 50 | 50 | 50 | 40 | 30 | 25 | 20 | |
| HZ-700 | 700 | 50 | 50 | 50 | 50 | 43 | 35 | 30 | 20 | 17 |
| HZ-800 | 800 | 50 | 50 | 50 | 50 | 45 | 36 | 30 | 20 | 17 |
| HZ-1000 | 1000 | 50 | 50 | 50 | 50 | 45 | 38 | 35 | 25 | 20 |
RF Foam Absorber Basic Information
· Base size: 500*500mm, customized acceptable
· Standard height: 30,50,100,150,200,300,400,500,700,800,1000mm
RF Foam Absorber Features
· The traditional material for anechoic chambers
· Outstanding absorbing over a wide frequency range
· Flexible
About US
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.
Use Scenarios

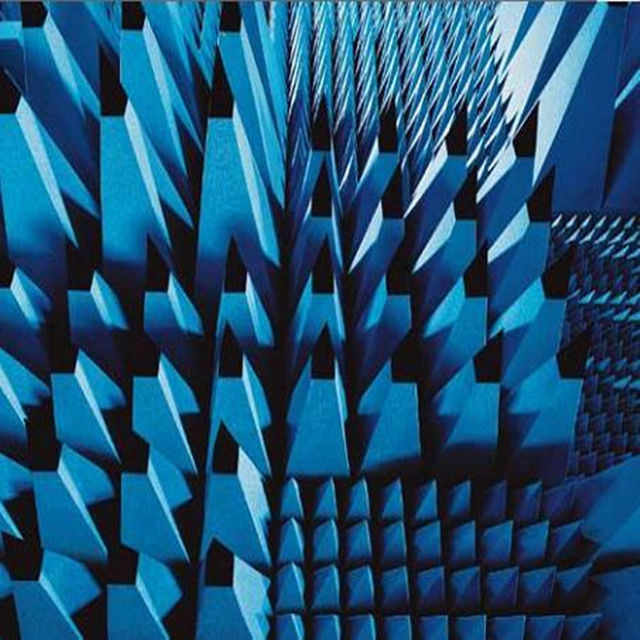

Anechoic Chamber Lining for Precision RF Testing
In laboratory environments conducting antenna measurement and EMC testing, this microwave absorbing foam serves as the core lining element to suppress electromagnetic reflections and ambient noise. Here, the product acts as a critical functional layer, ensuring the chamber meets accuracy and repeatability requirements. As a trusted anechoic chamber absorber, it supports compliance with international test standards by achieving substantial reflectivity attenuation. Integration involves seamless coordination with chamber design and ancillary equipment installation, providing a controlled environment for both commercial and research radio-frequency analyses.
EMI/RF Containment Room Retrofit and Upgrades
Industries requiring controlled RF environments often face challenges updating existing shielding rooms without extensive structural modifications. The offered customizable custom RF absorber material enables retrofitting of walls and ceilings to enhance absorption efficiency and EMI suppression without requiring rebuilds. This solution is particularly advantageous for military testing, frequency inverter environments, and sensitive medical device labs. It facilitates compliance with evolving electromagnetic compatibility standards by improving shielding performance and reducing electromagnetic interference risks. Operational workflows benefit from shortened installation times and minimal disruption to critical test schedules.
What materials are used in your microwave absorbing foam products?
Our microwave absorbing foam is primarily made from polyurethane-based foam designed for high microwave absorption across broad frequencies. We also offer variants such as rubber sheets and carbon-based foams. These materials ensure effective RF noise suppression in controlled environments like anechoic chambers and shielding rooms.
Can I customize the size and frequency range of your RF pyramid absorber?
Yes, we provide customized base sizes and heights as well as tailored reflectivity levels from 10 dB up to 50 dB or higher. This allows you to optimize your RF pyramid absorber to suit specific shielding room requirements and frequency attenuation needs from MHz to over 100 GHz.
How do I install the EMC absorber in my shielding room or anechoic chamber?
Our lightweight and flexible EMC absorber sheets are easy to install on walls and ceilings using standard mounting methods compatible with your room structure. We recommend planning installation layouts that maximize absorption and minimize reflections in your anechoic chamber absorber setup.
What shipping methods are available and what is the minimum order quantity?
We ship orders via EMS, DHL, FedEx, UPS, or TNT, all including digital tracking. The minimum order quantity is 1 square meter, making it feasible to order small or large quantities of our EMC absorber material to suit your project size and schedule requirements.
